Custom Thin Wall Teflon Tubing Manufacturer

Model number： TCP-007

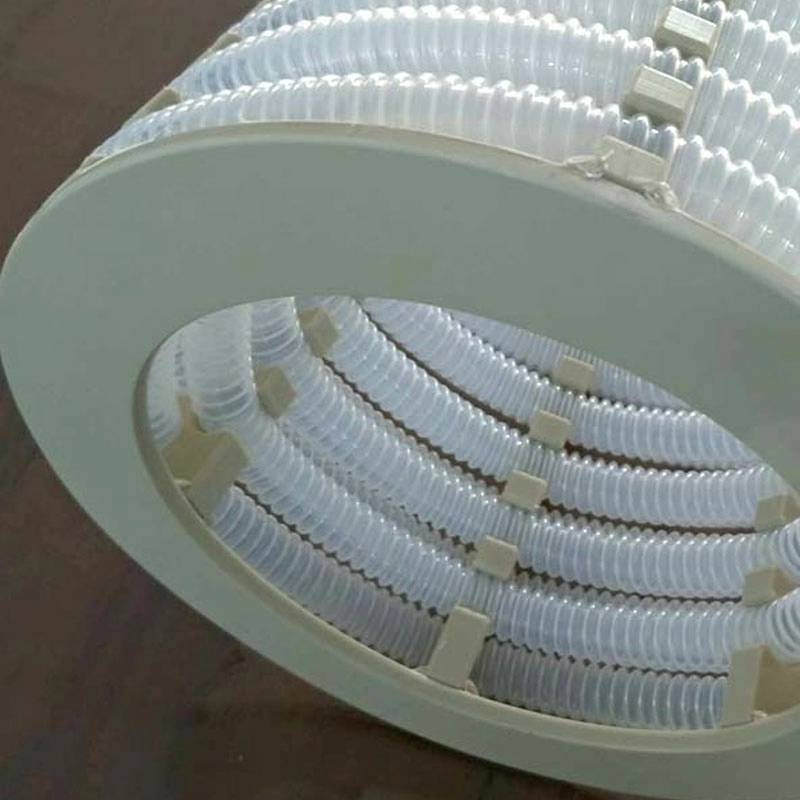

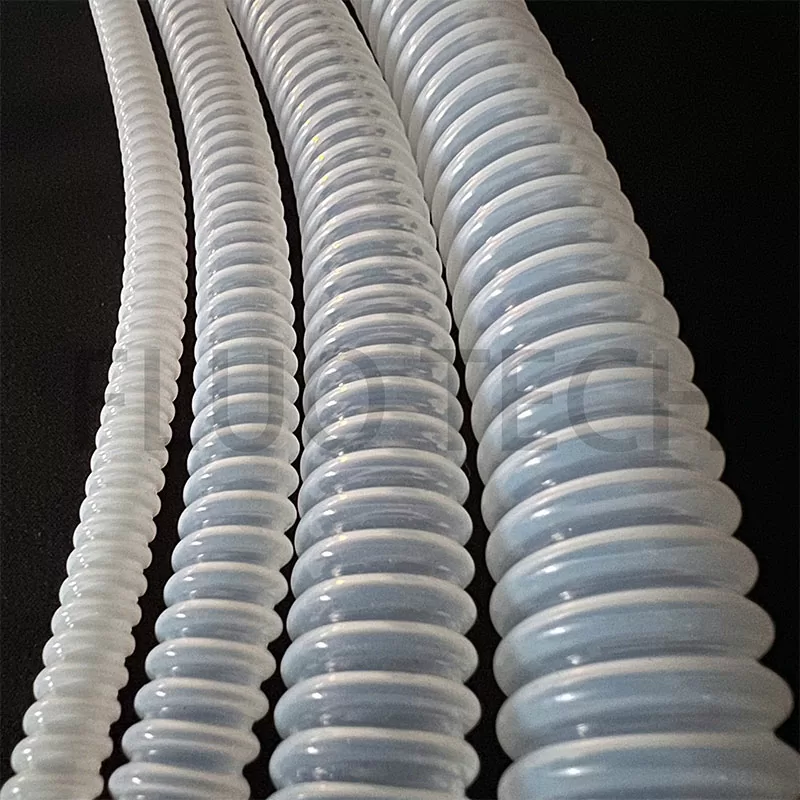

FLUO TECH manufactures thin wall PTFE convoluted tubing. Its thin wall not only allows the tubing to be extremely flexible, but also acts as an extremely efficient heat exchanger due to the nature of its thin wall.
Material: PTFE, TFM

Thin Wall PTFE Convoluted Tubing [METRIC]
Part callout	#ID	MIN. ID	NOM. ID	MAX. OD	MAX WALL THICKNESS	PITCH	WEIGHT	MIN. BEND RADIUS
Part callout	#ID	mm	mm	mm	mm	mm	[kg/m]	mm	mm
TNC-01	01	4.50	4.75	8.31	0.30	2.54	1.6	12
TNC-02	02	6.73	6.99	10.80	0.36	2.82	3.1	16
TNC-03	03	7.67	7.92	12.12	0.36	2.82	3.2	17
TNC-04	04	9.27	9.53	12.95	0.41	2.82	4.2	20
TNC-05	05	10.85	11.10	14.91	0.41	2.82	5.5	22
TNC-06	06	12.45	12.70	15.90	0.41	2.82	6.3	25
TNC-07	07	45.62	15.88	19.30	0.48	3.18	6.9	29
TNC-08	08	18.67	19.05	23.62	0.56	3.63	1.12	35
TNC-09	09	21.72	22.23	29.21	0.56	4.23	1.47	42
TNC-10	10	24.77	25.40	30.91	0.56	5.08	1.82	47

Thin Wall PTFE Convoluted Tubing [IMPERIAL]
Part callout	#ID	MIN. ID	NOM. ID	MAX. OD	MAX WALL THICKNESS	PITCH	WEIGHT	MIN. BEND RADIUS
Part callout	#ID	In.	In.	In.	In.	In.	[lb/ft]	In.
TNC-01	01	0.177	0.187	0.327	0..012	0.100	1.075	0.472
TNC-02	02	0.265	0.275	0.425	0.014	0.111	2.083	0.630
TNC-03	03	0.302	0.312	0.477	0.014	0.111	2.150	0.670
TNC-04	04	0.365	0.375	0.510	0.016	0.111	2.822	0.787
TNC-05	05	0.427	0.437	0.857	0.016	0.111	3.696	0.866
TNC-06	06	0.490	0.500	0.626	0.016	0.111	4.233	0.984
TNC-07	07	0.615	0.625	0.760	0.019	0.125	4.637	1.142
TNC-08	08	0.735	0.750	0.930	0.022	0.143	0.753	1.378
TNC-09	09	0.855	0.875	1.150	0.022	0.167	0.988	1.654
TNC-10	10	0.975	1.000	1.217	0.022	0.200	1.223	1.850
