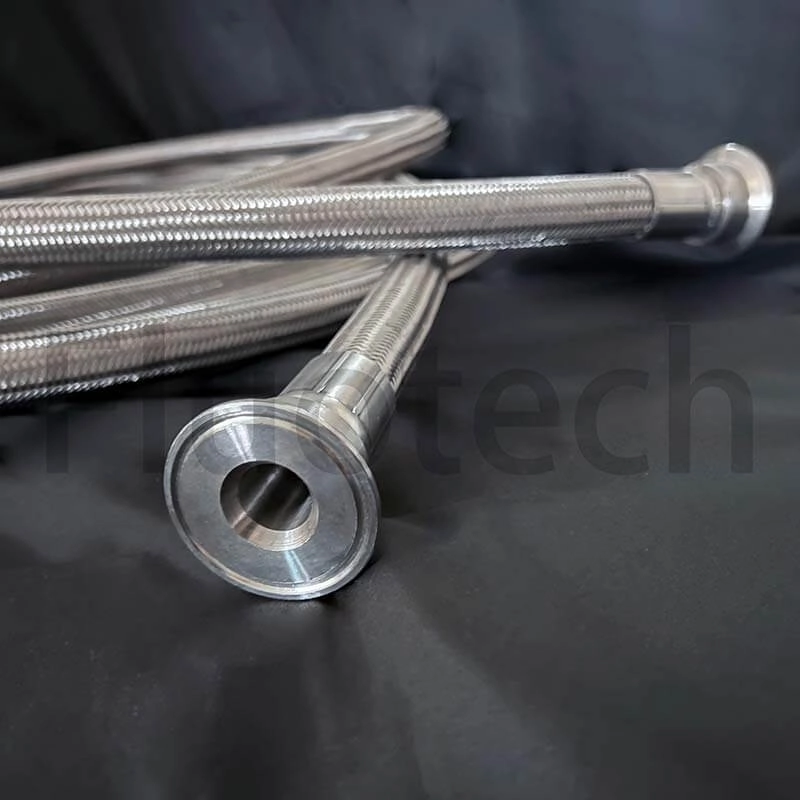

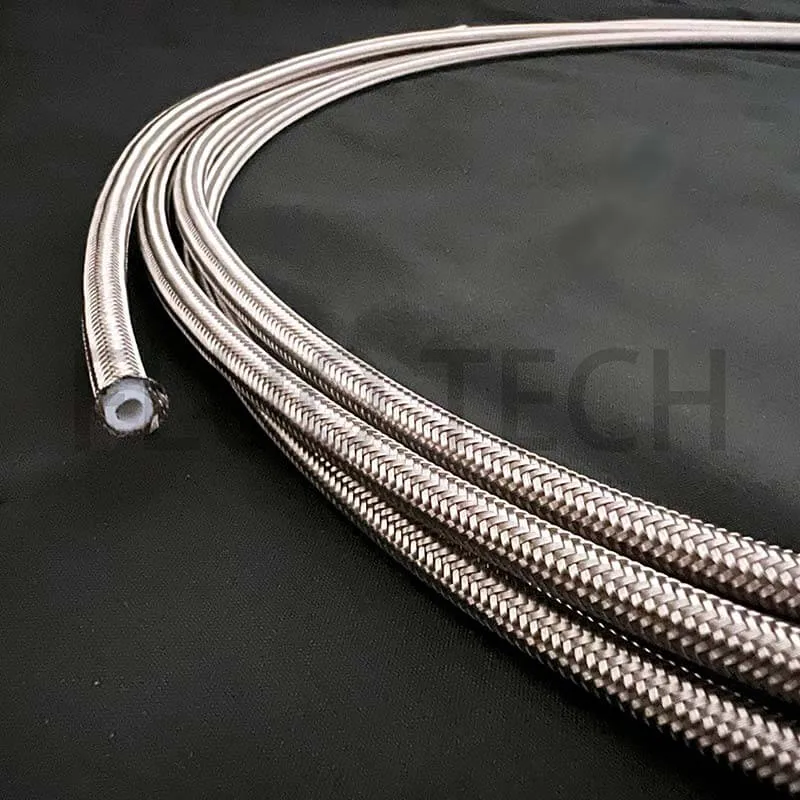

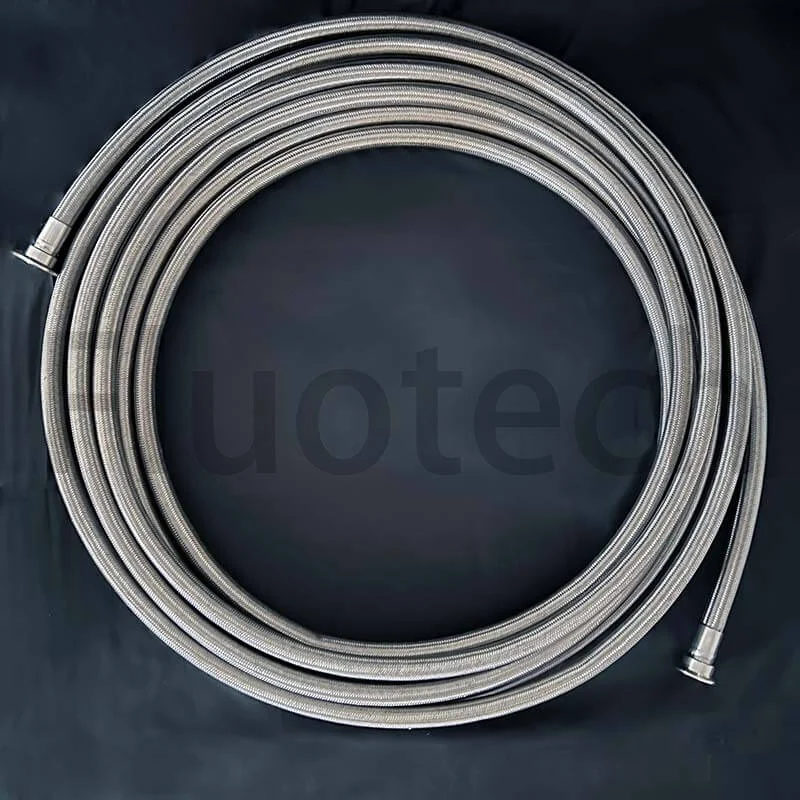

Stainless steel braiding of any tube exponentially increases the capability of handling extreme pressures. Combined with an inner tube constructed of PTFE, and the outcome is a product not only capable of withstanding extreme pressures, the ability to maintain its structural integrity at various temperatures, but also prone to almost all chemicals.
The stainless steel braided fluoroplastic tubing is commonly used in the transportation of pressurized acid/base between tanks or facilities, and semi-truck airbrakes, etc…
STAINLESS STEEL BRACIDED PTFE HOSE
| Number | Size | Inner diameter (mm) | Outer diameter (mm) | Normal work pressure kg / cm2 | Burst pressure kg / cm2 | Weight g/m | Bending/mm ± 3mm |
|---|---|---|---|---|---|---|---|
| FSH-15 | 3/16 | 3.20~3.35 | 5.85~6.30 | 285 | 832 | 89 | 50 |
| FSH-20 | 1/4 | 4.64~5.17 | 7.29~8.48 | 256 | 625 | 104 | 76 |
| FSH-25 | 5/16 | 5.96~6.83 | 8.22~9.46 | 232 | 552 | 122 | 81 |
| FSH-30 | 3/8 | 7.55~8.39 | 10.31~11.71 | 194 | 540 | 155 | 131 |
| FSH-40 | 1/2 | 9.91~10.67 | 12.73~14.18 | 162 | 450 | 185 | 182 |
| FSH-50 | 5/8 | 12.54~13.37 | 15.72~16.73 | 139 | 425 | 220 | 211 |
| FSH-60 | 3/4 | 15.19~16.59 | 18.57~20.18 | 101 | 385 | 252 | 252 |
| FSH-100 | 1 | 21.39~23.05 | 24.59~27.03 | 93 | 240 | 406 | 421 |
